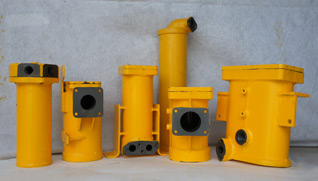

Return Line Filters

FEMCO series of return line filters are generally used in machinery and mobile applications, requiring oil re-usability thereby economizing on existing resources.

Return Line Filters Return Line Filters small

Return Line Filters - Tank Top Mounted

This series of return line filters are designed for tank top mounting which would add aesthetic value to hydraulic tanks as well as act as space reducing while designing compact structures of hydraulic and lubrication units.

The RLG series comes with threaded end connections with flow ranging from 40 LPM to 450 LPM and the RLF comes as flanged ends along with flow range from 100 LPM to 2000 LPM.

Return Line Tank Mounted
Model No. Connections Working Pressure (Bar) Type of Housing Micron Rating
(Nominal / Absolute)		 Filter Media
Nominal Absolute
RLG 40 G 1/2 10 Gery Iron casting
or
Aluminium casting 		3
6
12
20
30		 5
10
25
40
60
80		 Glass Fiber,
SS Mesh,
Paper
RLG 65G 3/4
RLG 100G 1
RLG 140G 1
RLG 250G 1 1/4
RLG 350G 1 1/2
RLG 450G 1 1/2
RLF 100SAE 1
RLF 140SAE 1
RLF 250SAE 1 1/4
RLF 350SAE 1 1/4
RLF 450SAE 1 1/2
RLF 300SAE 2
RLF 400SAE 2
RLF 600SAE 2 1/2
RLF 1000SAE 3
RLF 1600DN 100
RLF 2000DN 100

Above ranges are available in Duplex Models. 10 bar collapse rated elements with or without bypass
